5,000 control boards, delivered to a fixed date
- 5,000
- Boards delivered
- 0
- Spins after review
- 100%
- AOI & net-list tested
Electronic product development
From schematic to shipped product.
Design, fabrication, sourcing, assembly and test — one team, one schedule, boards that work first time.
- 8+
- Years in electronics design
- 150+
- Complex designs delivered
- 24hr
- Fastest turnkey prototype
- NoMOQ
- One board or one million
0.25 mm BGAplaced & X-ray verified
100% AOI + net-list teston every assembled board
Your tools · your distributors · our line
01 What we build
Boards that hold up in the field.
02 Services
Eight disciplines. One point of accountability.
01

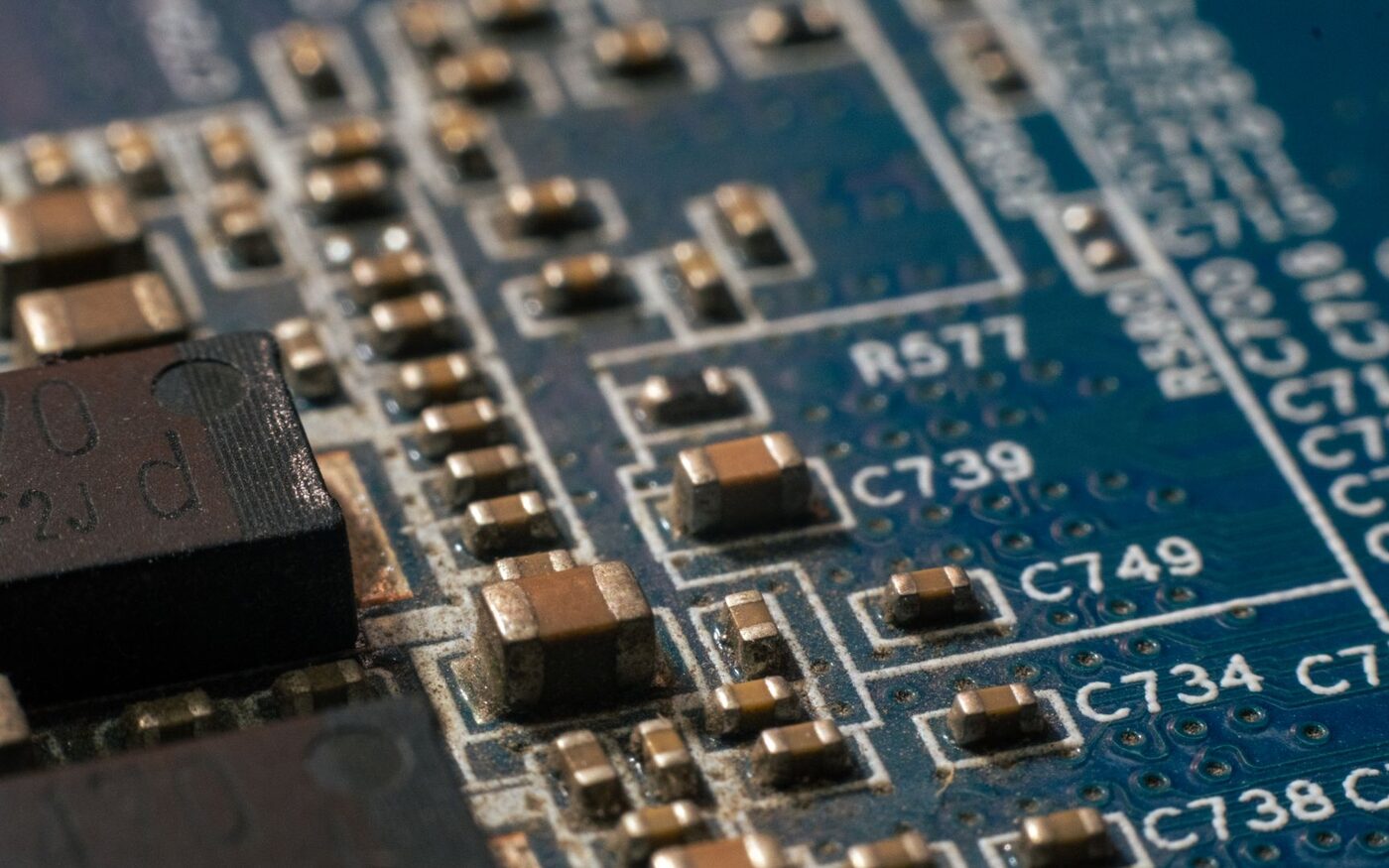

PCB Design
Schematic capture, multilayer layout, SI/PI simulation and fabrication-ready output.

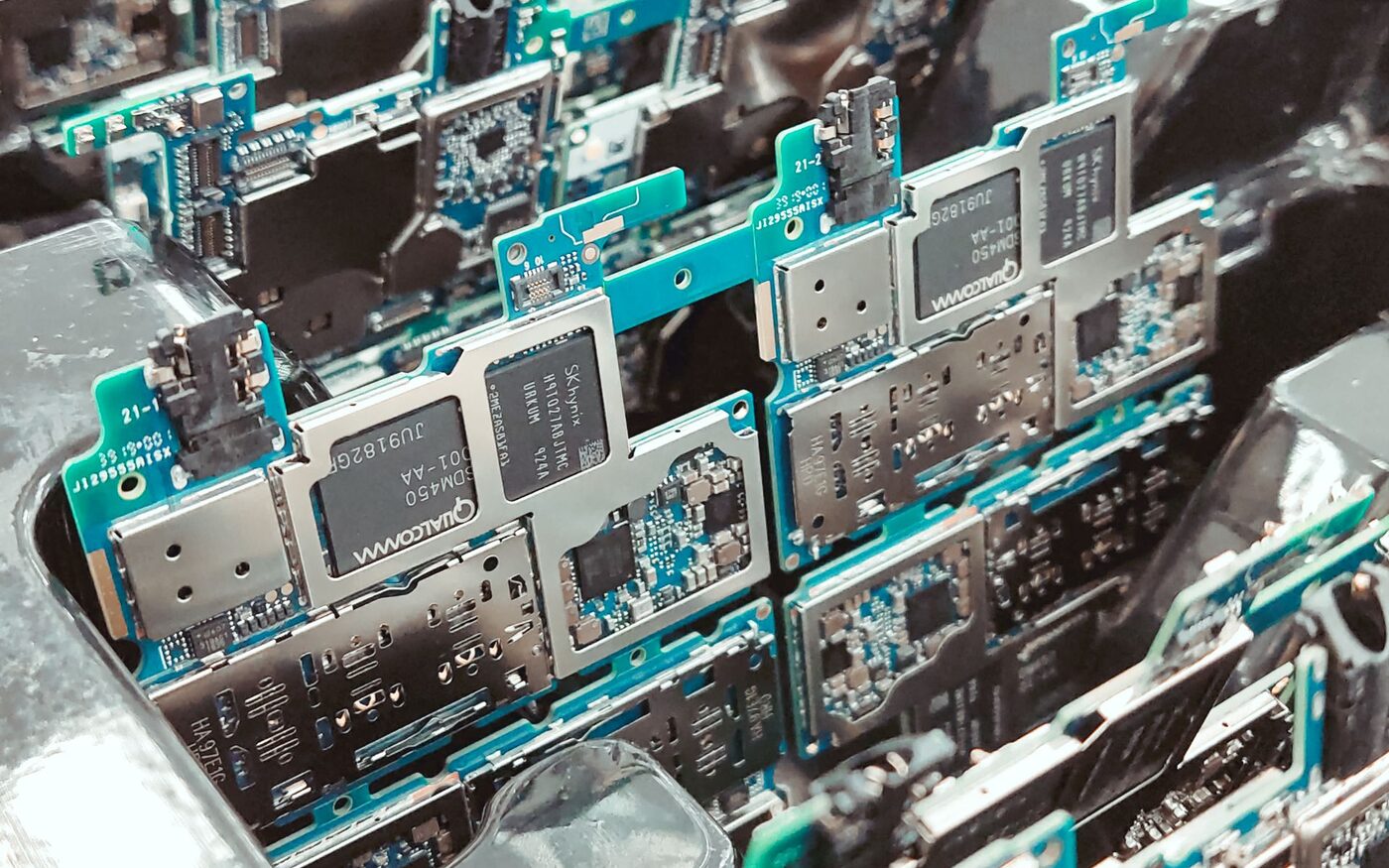

02PCB Fabrication

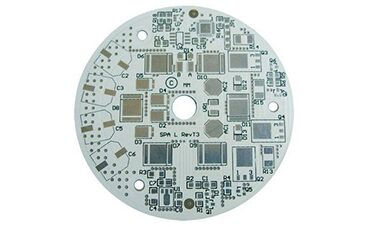

Quick-turn prototypes and bulk runs — single-sided, multilayer PTH and metal-core.

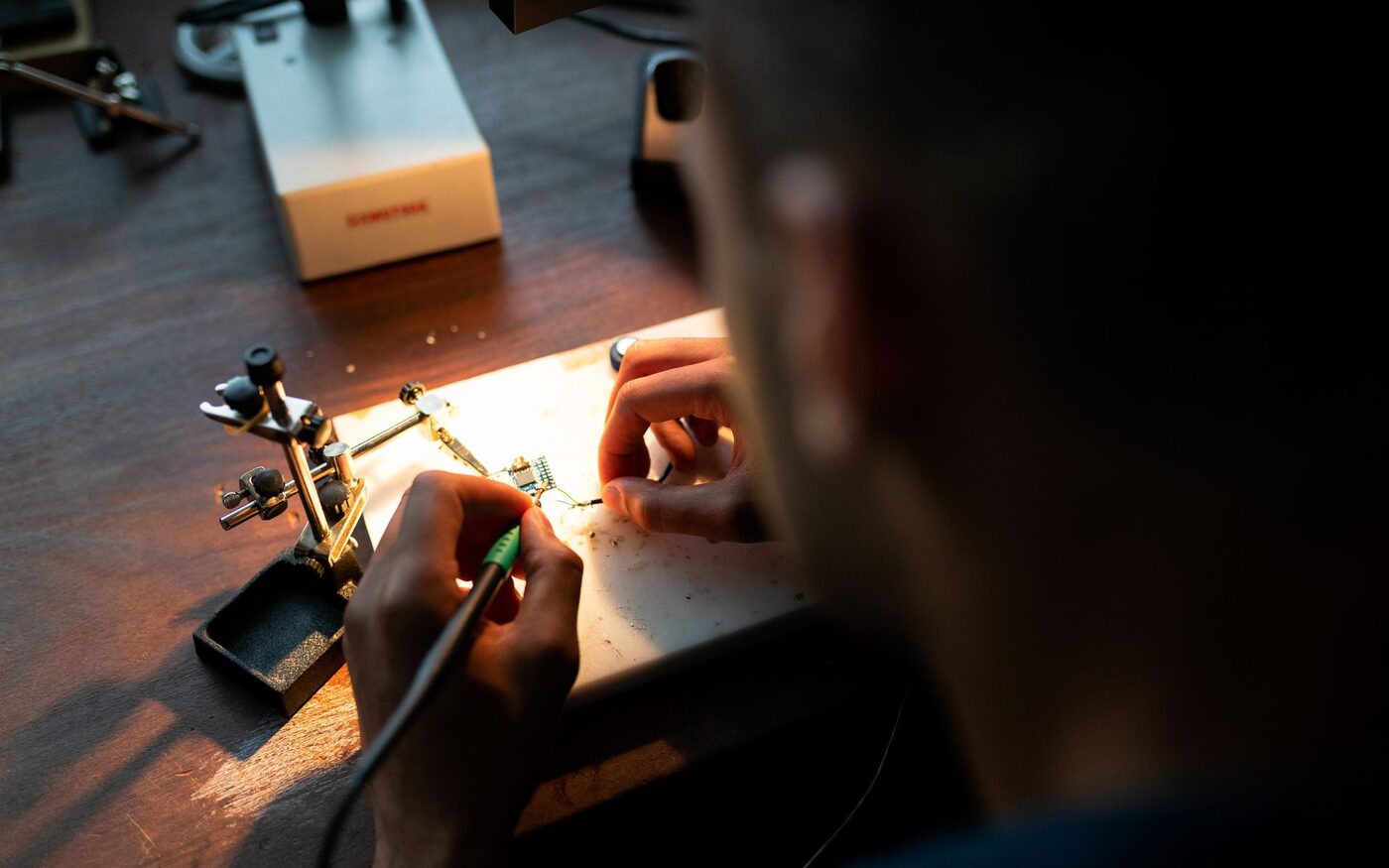

03PCB Assembly
Full, partial and consigned turnkey SMT/THT with free DFM, 100% AOI and BGA X-ray.

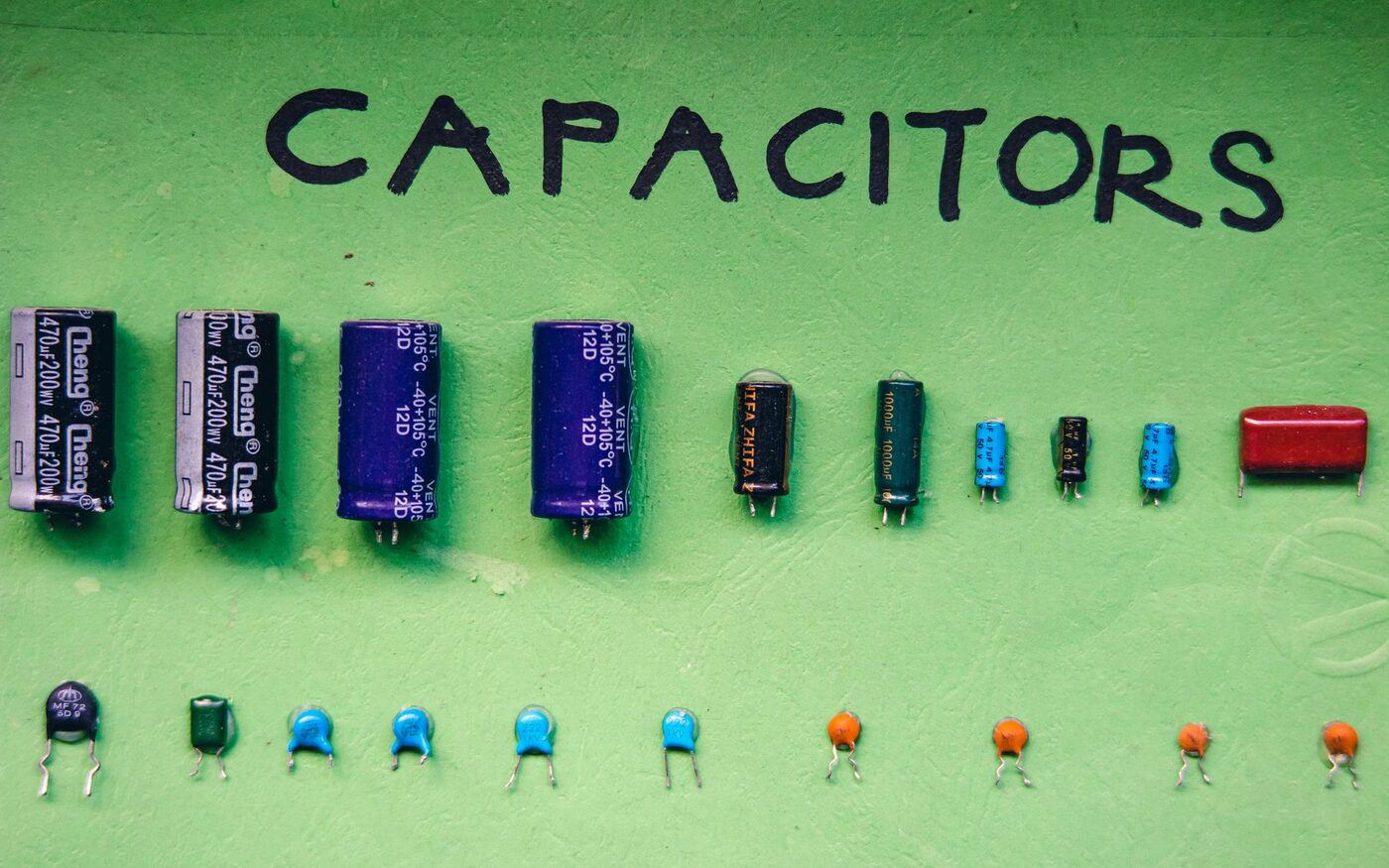

04Component Sourcing
BOM scrubbing, multi-distributor pricing, obsolete parts and scheduled call-off stock.
05Turnkey Development
One quote for fabrication, components, assembly and enclosure. Prototypes in 24 hours.

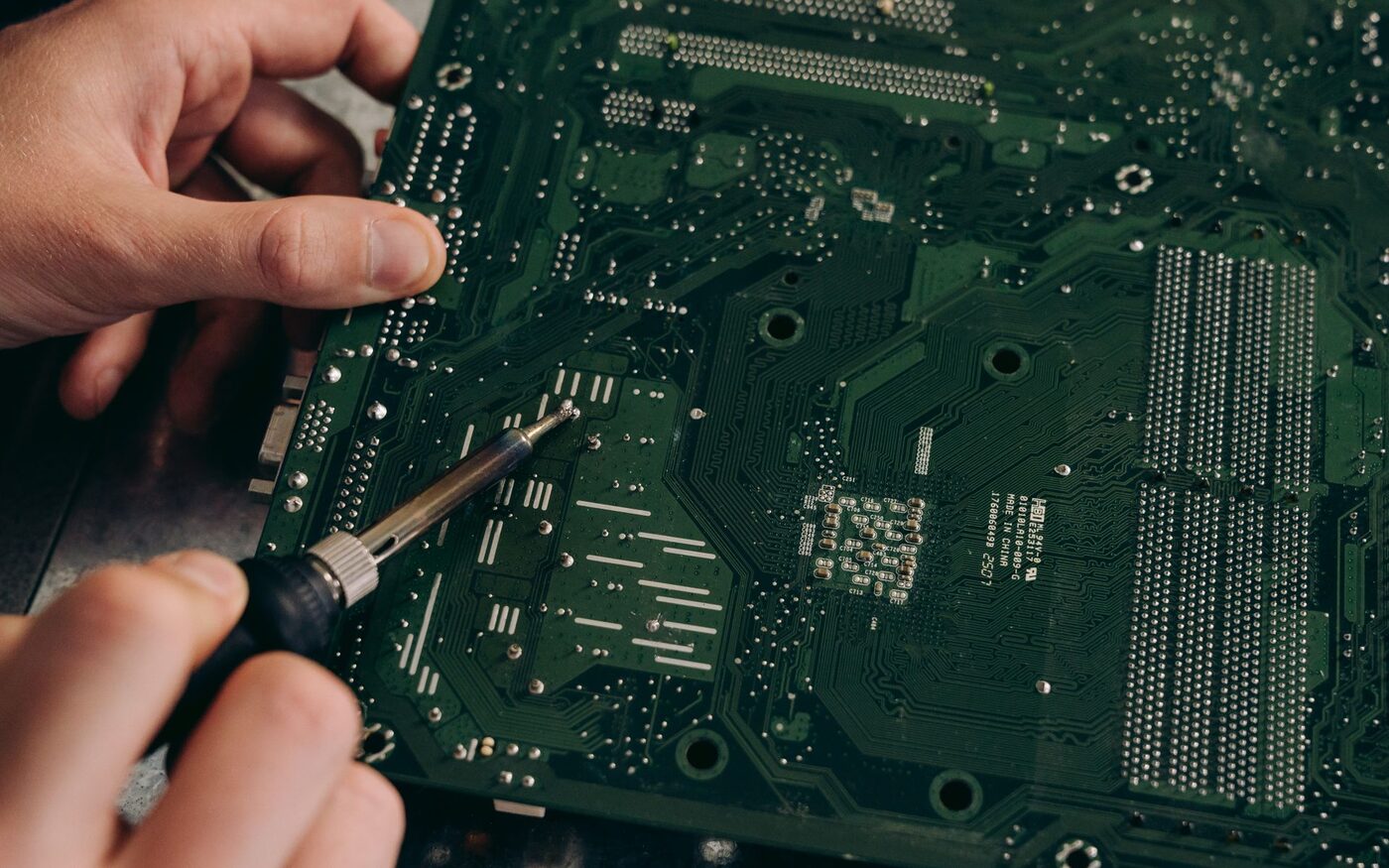

06Reverse Engineering
Rebuild a board with no data — CAD recovered, then redesigned around current parts.

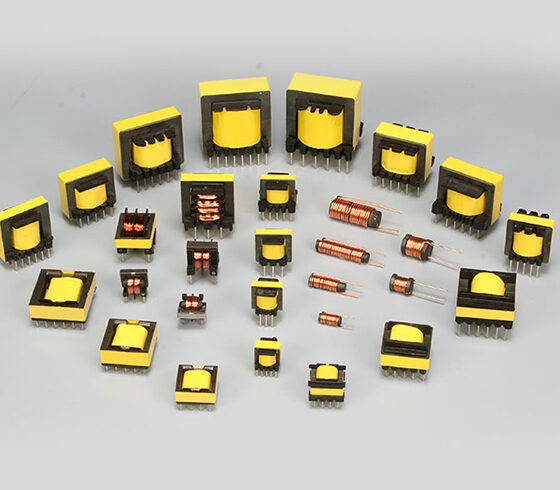

07Inductor Design
Ferrite coils, SMPS transformers, HV coils and EMI filter chokes.

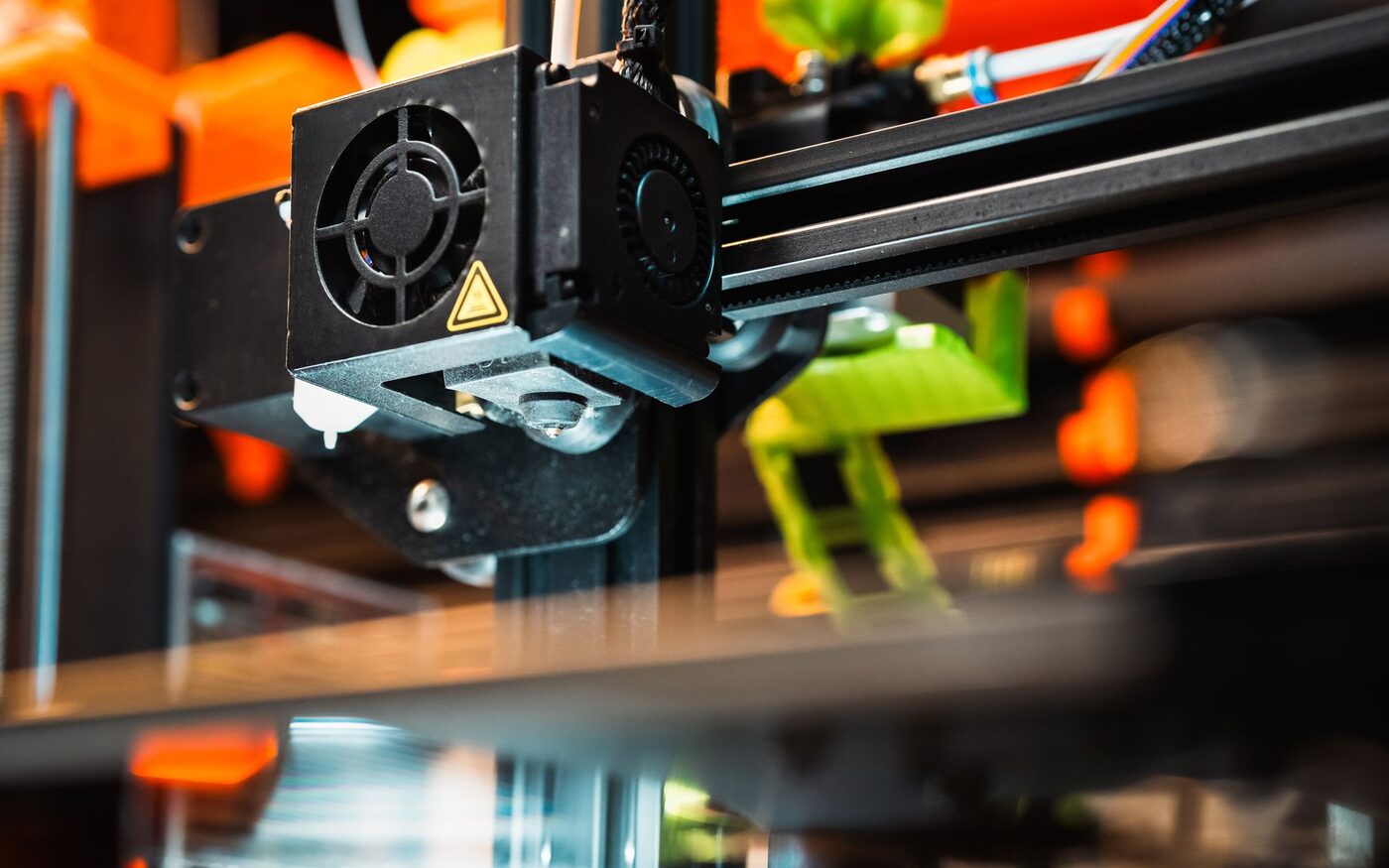

08Enclosure Design
Mechanical design and on-demand FDM printing in PLA, ABS and PETG.
03 Capabilities
The numbers a process engineer asks for first.
| Base material | FR1 · FR4 · CEM1 · CEM3 · phenolic · Al |
|---|---|
| Board thickness | 0.4 – 3.2 mm |
| Finished copper | 1 · 2 · 3 oz (35 / 70 / 105 µm) |
| Maximum board | 400 × 500 mm |
| Minimum track / gap | 4 mil (0.10 mm) |
| Finished hole | 0.25 mm min · 6.0 mm max PTH |
| Surface finish | HAL · ENIG · OSP · lacquer · nickel |
| Electrical test | BBT · flying probe |
| Lead time | 24 h · 3 · 5 · 7 · 10 · 15 days |
| Technologies | SMT · through-hole · mixed · manual |
|---|---|
| Minimum order | None — 1 to 1,000,000 pcs |
| Board size | 50 × 50 mm → 400 × 500 mm |
| BGA | 0.25 mm pitch, X-ray verified |
| Inspection | 100% AOI · 100% net-list test |
| Functional test | To your spec, with IC programming |
| Stencil | Framed laser-cut, 29″ × 29″ |
| Compliance | RoHS & non-RoHS, same price |
| Lead time | 2–5 weeks · 24 h prototype |
| CAD tools | Altium · Allegro · OrCAD · PADS · KiCad |
|---|---|
| Layer count | 2-layer → high-density multilayer |
| Signal integrity | High-speed, impedance, timing analysis |
| Power integrity | DC drop, plane partitioning |
| EMC | EMI strategy, return-path review |
| Packages | Fine-pitch BGA fan-out · QFN · analog |
| Deliverables | CAD project · DFM · Gerber · BOM |
| Input accepted | 274X · ODB++ · Protel · Eagle · netlist |
04 Engineering process
Six gates between idea and dock.
-
Gate 01
Specification & feasibility
Your requirement becomes a written engineering specification, with component and compliance risks named up front.
Written spec & risk register
-
Gate 02
Schematic & BOM
Capture, part selection against real availability, and a validated BOM you can cost before a track is drawn.
Costed, lifecycle-checked BOM
-
Gate 03
Layout, SI & PI
Impedance-controlled routing with DC-drop and signal-integrity simulation, then DFM and DFT review before release.
DFM report & CAD project
-
Gate 04
Prototype & validation
Fabricated, populated and tested in-house — as fast as 24 hours. Photos of the first unit before volume starts.
First-article photos for sign-off
-
Gate 05
Production release
Panelised data, stencil, process parameters and fixtures locked. Sourcing moves to scheduled call-off.
Frozen production data pack
-
Gate 06

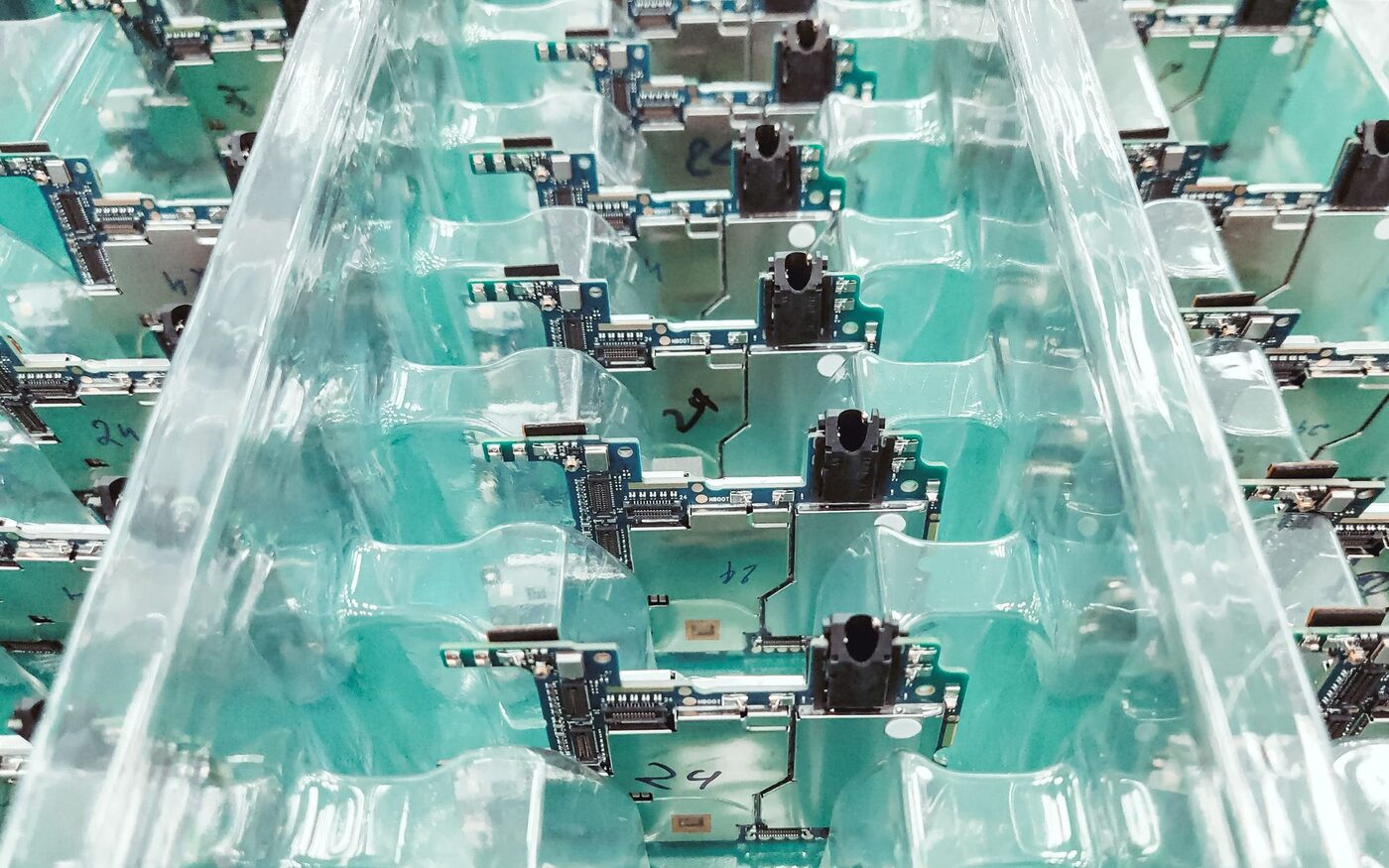

Build, test & despatch
100% AOI and net-list test, functional test where specified, then despatch on our transport or via Blue Dart.
Test records & despatch note

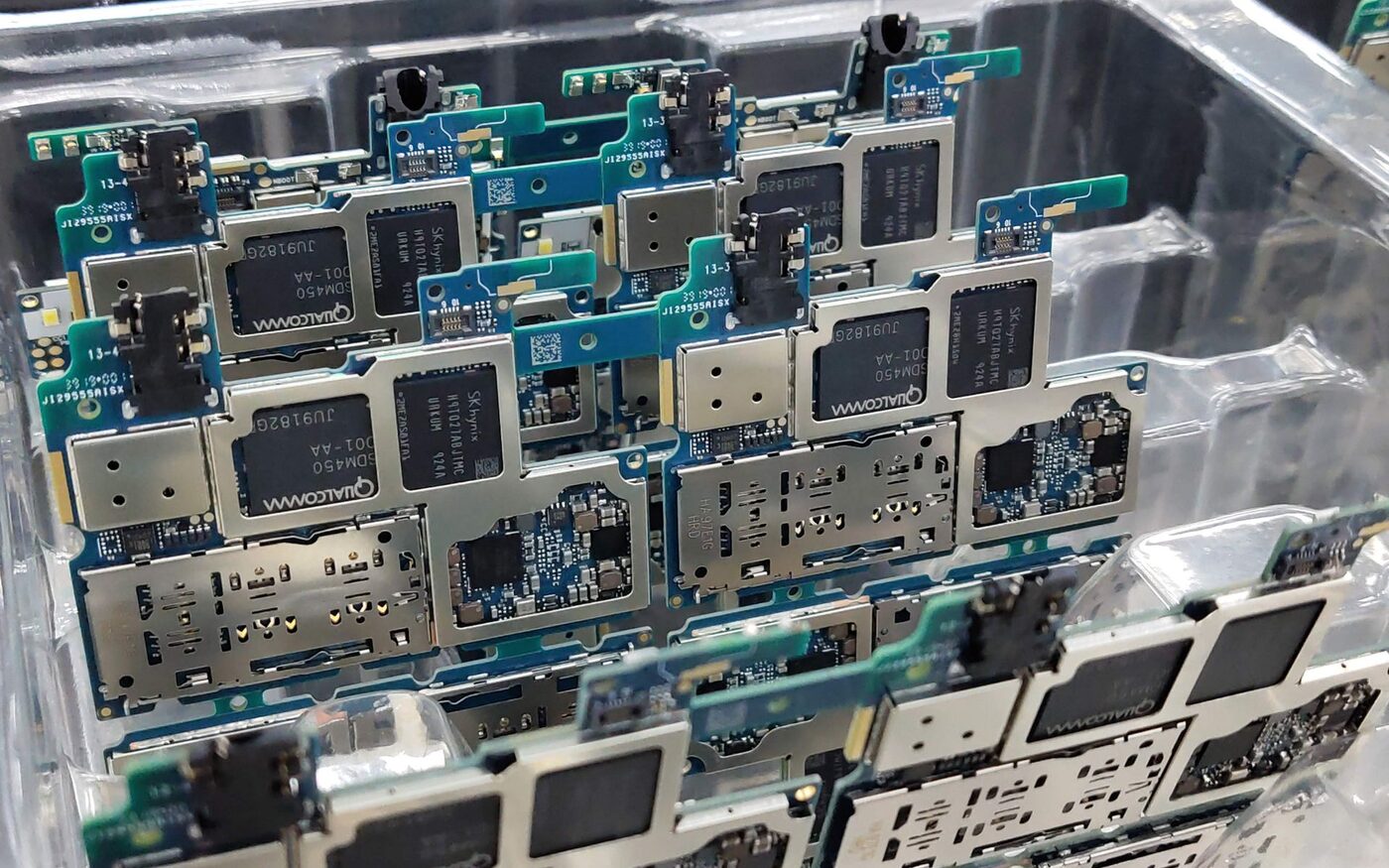

05 Manufacturing
One building. No hand-offs.
Fabrication, assembly and test on one site in Bhavnagar — which is why a change on Tuesday is a tested board on Thursday.
Arrange a visit- 400×500
- Max panel, mm
- 24hr
- Fastest turnkey
- X-ray
- On every BGA
- 1Mpcs
- Upper capacity
Hallmark PCB Services by the numbers
8+
Years of experience
50+
Customers served
150+
Complex designs
100K+
PCB traces routed
30+
BOMs executed
06 Industries served
Eleven sectors, one standard of rigour.
Each sector is governed by one constraint that decides the design. We build to that constraint — not to a house template.
- 01 MiningVibration, dust ingress and thermal cycling
- 02 Energy meteringAccuracy held across temperature and load
- 03 CommunicationThe stack-up decides whether it passes EMC
- 04 Power supplySwitching loops and magnetics as one
- 05 Food processingSurvives steam, caustic wash and condensation
- 06 Consumer electronicsEvery saving repeats on every unit built
- 07 HealthcareLow noise, running continuously around people
- 08 Agricultural equipmentOutdoors, hosed down, on an unstable supply
- 09 AerospaceThe build record matters as much as the build
- 10 PharmaceuticalThe audit trail is the deliverable
- 11 Electrical apparatusHigh current, high voltage, tight creepage
- → Your sectorTell us the constraint that governs it
07 Why choose us
What customers actually buy.
Rarely just a board. Usually a schedule they can commit to — and an engineer who picks up the phone.
About Hallmark
- First-time-right design
- DFM and DFT settled during layout. Fewer spins, faster to market.
- On-time delivery
- Schedules built from real component lead times, not optimism.
- Engineers you can reach
- Support outside business hours during a build; scheduled design reviews.
- Quality gates, not spot checks
- DFM, incoming verification, 100% AOI, BGA X-ray and net-list test.
- Transparent pricing
- No setup charge on assembly. Written response within 24 hours.
- Your IP stays yours
- NDA on request before files change hands. Never shared onward.
01
02
03
04
05
06
08 Selected work
Projects that ran to schedule.
An obsolete machine board, rebuilt around current parts
- Full
- CAD recovered
- Drop-in
- Form, fit, function
Most of our work sits under NDA, so these summaries are deliberately non-specific. Ask and we will connect you with referenceable customers in your sector.
09 Quality & compliance
Checks that happen whether or not you ask.

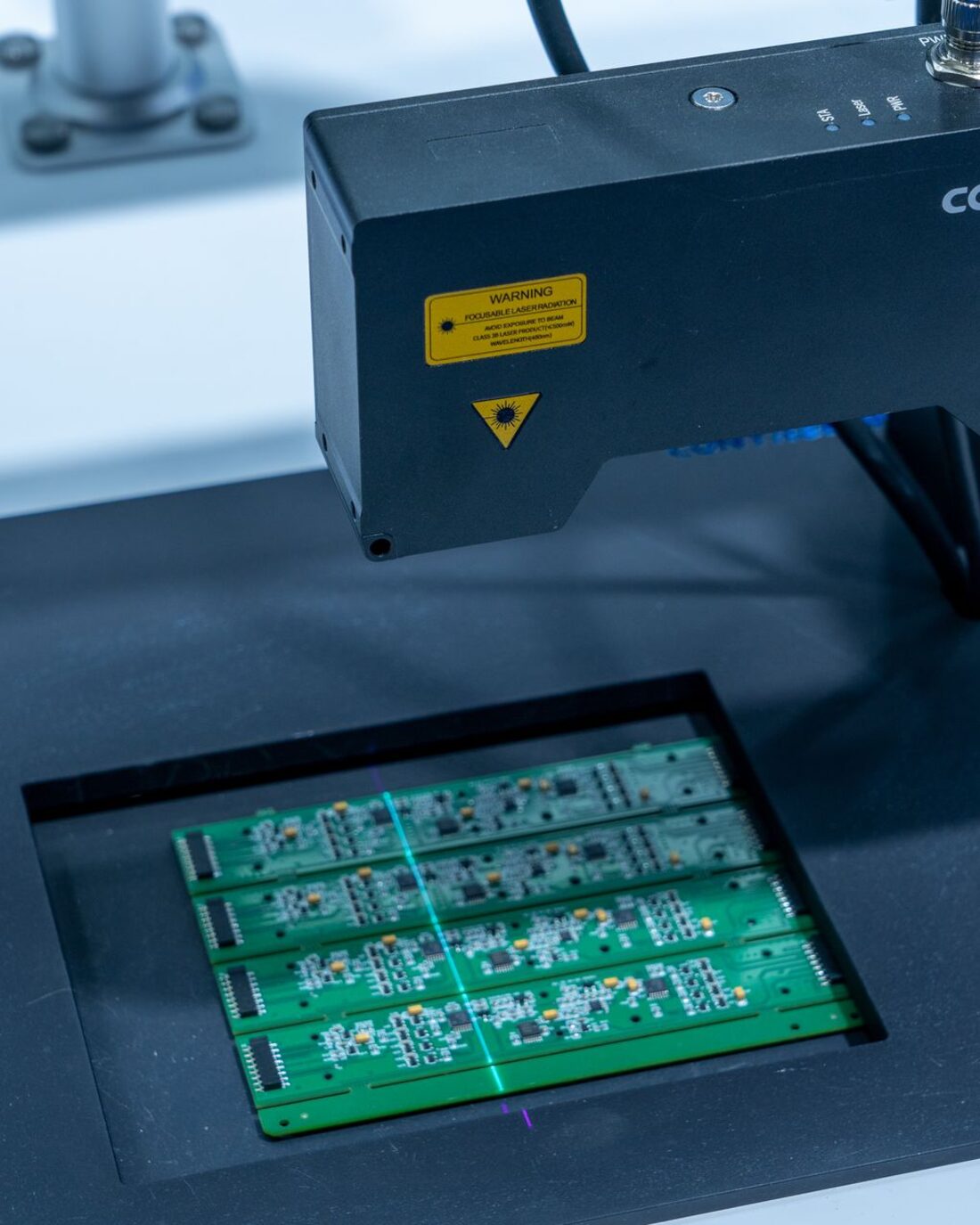

100%
AOI coverage
Every assembled board optically inspected — never a sample.
Every
BGA X-rayed
Down to 0.25 mm pitch, on every package we place.
100%
Net-list tested
Electrical verification on every board before it ships.
Free
DFM review
On every incoming design, before you commit to a build.
Both
RoHS & non-RoHS
Same price — declare your requirement with the order.
NDA
Before files move
Signed on request, and your designs never go to third parties.
10 Client feedback
In their words, not ours.
One of the best electronics and automation-based solution providers in Bhavnagar. Timely delivered a lot of 5k PCBs of my product.
I have seen every solution by Hallmark PCB Services — fully satisfied. Really great work.
Awesome PCB printing quality. Received in two days.
Gerber files, centroid data and a bill of materials. If the PCB order is already with us and your Gerbers include silkscreen, copper and solder-paste layers, we only need the centroid and BOM.
No. One prototype or a million pieces. We also charge no setup cost on assembly — quoting is quantity-based.
Two to five weeks for a full turnkey order, covering PCB manufacture, procurement and assembly. Rapid prototypes in as little as 24 hours.
Yes — down to 0.25 mm pitch, with X-ray inspection on every BGA. Please tent any vias under the BGA with solder mask.
Gerber RS-274X with Excellon drill data. We also accept ODB++, Protel .PCB / .PCBDOC and Eagle .BRD. We cannot accept 274D.
12 Start a project
Send us a board, a BOM, or just a deadline.
Attach your data pack and you will have a written quote within 24 hours.
